Fine Root Biomass Dynamics in Brackish Marsh Vegetation

Hunter Weber

November 20, 2023 at 4:59 pm | Updated December 27, 2023 at 6:53 pm | 6 min read

In this article, we delve into a pivotal study conducted in the unique environment of a cool-temperate brackish marsh. The research, titled “Estimation of fine root biomass using a minirhizotron technique among three vegetation types in a cool-temperate brackish marsh,” offers crucial insights into the complex world beneath our feet – the intricate and often overlooked realm of fine roots in diverse vegetation. This study stands out for its innovative approach and significant implications for understanding wetland ecosystems.

As we navigate through this research, we will touch upon the technological aids that enable such intricate studies, including advanced root scanners that capture the unseen growth patterns beneath the soil. Our discussion will recount the findings to enhance your understanding of the study’s implications and give us a better look at how non-destructive techniques can give us a view in real time.

Exploring Root Biomass Dynamics in Brackish Marshes

The researchers sought a comprehensive understanding of the dynamics of fine root biomass among different vegetation types in a cool-temperate brackish marsh. This endeavor presented a challenge akin to understanding nitrogen’s role in crops within the context of marsh ecology. The study’s objectives were twofold: firstly, to evaluate the effectiveness of the minirhizotron technique in estimating fine root biomass across various vegetation, and secondly, to analyze how these estimations reflect the actual biomass distribution in diverse marsh environments.

Subscribe to the CID Bio-Science Weekly article series.

By submitting this form, you are consenting to receive marketing emails from: . You can revoke your consent to receive emails at any time by using the SafeUnsubscribe® link, found at the bottom of every email. Emails are serviced by Constant Contact

The study aims to significantly contribute to ecological research by providing insights into root dynamics in wetland ecosystems. By achieving these goals, the research is poised to influence environmental management practices and enrich our understanding of marshland conservation, thus contributing to the broader discourse on ecosystem sustainability.

Innovative Techniques in Root Biomass Estimation

This study’s methodology was meticulously designed to assess fine root biomass in a brackish marsh environment accurately. The researchers utilized the minirhizotron technique, a non-invasive method known for its precision in studying root systems. The process involved installing clear tubes at various depths within the marsh at three distinct vegetation sites: those dominated by Phragmites australis, Juncus yokoscensis, and a mixed vegetation of Miscanthus sinensis and Cirsium inundatum.

Root images were captured periodically, allowing for a detailed analysis of root growth patterns and biomass distribution. This approach facilitated a comprehensive evaluation of the root systems, ensuring accurate biomass estimations and providing invaluable data for ecological studies.

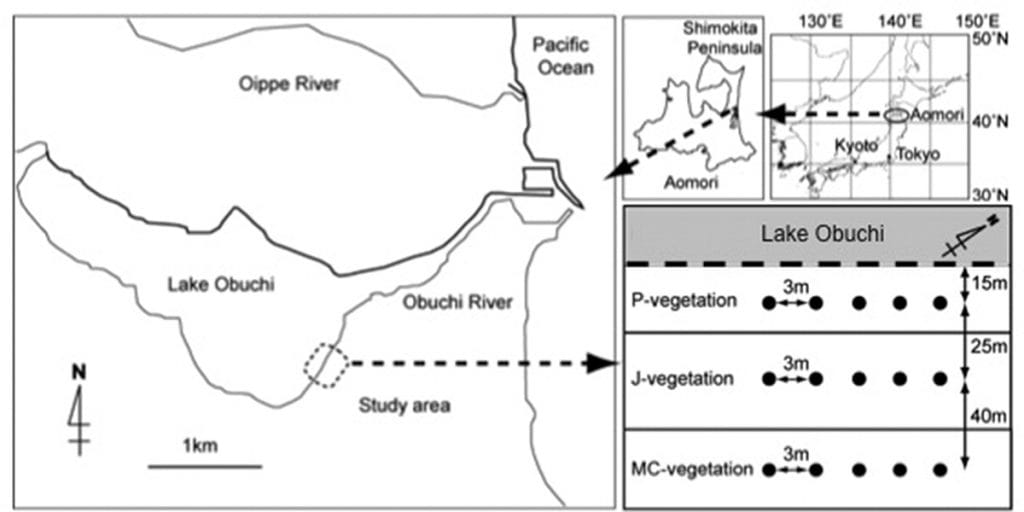

Figure 1. Location of the cool-temperate brackish marsh around Lake Obuchi (40°57N, 141°22′E). Five clear tubes for minirhizotron analysis were installed at each of the three vegetation sites, Phragmites australis (Cav.) Trin. ex Steud.-dominated, Juncus yokoscensis (Franch. & Sav.) Satake-dominated, and Miscanthus sinensis Andersson. and Cirsium inundatum Makino-dominated vegetation. Lake Obuchi is shown with a dark gray shade. Broken line indicates the lake shore of Lake Obuchi.

Ecological Insights from Root Biomass Analysis

This research holds profound implications for ecology and conservation, particularly in understanding wetland ecosystems. By accurately estimating fine root biomass in different vegetation types, the study provides key insights into the ecological functions of roots, such as nutrient cycling, carbon storage, and soil stabilization.

These findings can inform conservation strategies for brackish marshes, which are vital for biodiversity and ecological balance. Moreover, the methodology offers a model for future ecological studies in other environments, emphasizing the importance of non-destructive techniques in preserving delicate ecosystems while conducting thorough scientific investigations.

Key Discoveries in Root Biomass Dynamics

In their detailed study, researchers observed a compelling correlation between root volume and fine root biomass among diverse vegetation types in a brackish marsh. This correlation was underpinned by linear regression analyses, which showed significant correlations (p < 0.001, R² > 0.75) across all vegetation types, thereby validating the reliability of root volume as a proxy for biomass estimation.

The study employed the minirhizotron technique (Bm) alongside the core sampling method (Bs), complemented by conversion factors (k) for each vegetation type and soil depth. These factors were pivotal in translating the minirhizotron data into accurate fine-root biomass estimates. Notably, the technique was particularly effective in single-species-dominated vegetation like P. australis and J. yokoscensis, demonstrating its utility. However, in more diverse vegetation types, such as M. sinensis and C. inundatum, which showed higher species richness and spatial heterogeneity in root distribution, the minirhizotron estimations required careful interpretation and adaptation to align with the core sampling method.

This nuanced approach in the study showcases the method’s adaptability and accuracy in different ecological settings, while also highlighting the complexities involved in non-destructive root biomass estimation in varied ecosystems.

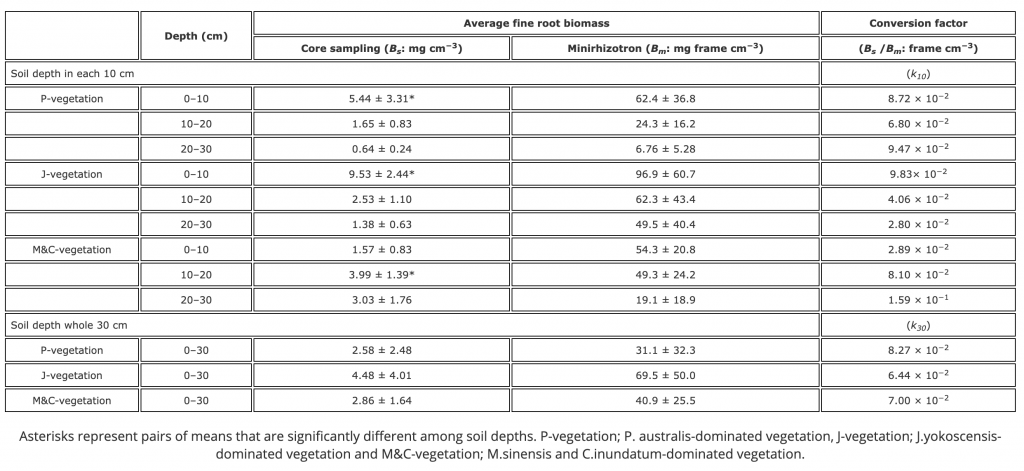

Table 1: Average fine root biomass estimation using minirhizotron (Bm) and core sampling method (Bs) and conversion factors (k) for each vegetation type and soil depth.

The study uncovered key relationships between fine root biomass and vegetation in the brackish marsh. Notably, it found:

  1. Strong Correlation: A significant correlation (p < 0.001, R² > 0.75) between root volume and weight was observed across all vegetation types, validating root volume as a reliable indicator of fine root biomass.
  2. Conversion Factors: The research developed specific conversion factors to translate minirhizotron data into accurate fine-root biomass estimates. These factors varied across different vegetation types and soil depths, highlighting the need for a tailored approach in different ecosystems.
  3. Species-Specific Accuracy: The minirhizotron technique showed high efficacy in single-species-dominated vegetation, like P. australis and J. yokoscensis. However, this method faced challenges in more diverse vegetation types, such as M. sinensis and C. inundatum, due to more extraordinary species richness and root distribution variability.
  4. Distinct Biomass Distribution: The study revealed unique vertical root biomass distribution patterns among the vegetation types, suggesting that species diversity and environmental factors significantly influence root growth and biomass.

These insights confirm the minirhizotron method’s effectiveness in certain contexts and underscore the complexity of estimating root biomass in diverse ecosystems.

Technological Insights: The Vital Role of Minirhizotron in Root Biomass Study

Minirhizotron technology in this study provided invaluable insights into the underground world of root systems in brackish marsh vegetation. This sophisticated method allowed researchers to observe and analyze the intricate patterns of root growth and distribution non-invasively. The findings from this technology significantly enhanced our understanding of root biomass dynamics, highlighting its crucial role in ecological research and offering a window into the often unseen yet vital aspects of plant growth in diverse ecosystems.

This non-invasive technique captures a comprehensive picture of root architecture, enabling scientists to draw correlations between root system robustness and stem strength. The study’s reliance on root imaging exemplifies the technology’s value in agricultural research: it allows for a deeper understanding of plant-environment interactions, guides precision agriculture practices, and paves the way for future innovations in crop management strategies.

Note: Sample CI-600 Root image.

Prospects for Further Root Biomass Research

This study, while comprehensive, acknowledges limitations that pave the way for future research. The experimental conditions, though well-controlled, may not fully capture the complex interactions in natural ecosystems. Recognizing this, the research suggests a need for further studies in varied environmental settings to understand root biomass dynamics more broadly. Future endeavors could focus on long-term ecological monitoring and incorporating advanced imaging technologies, offering a more nuanced understanding of root systems in diverse vegetation types and ecological conditions.

Key Takeaways:

  1. Root Biomass Dynamics: The study demonstrates a significant correlation between root volume and biomass in various marsh vegetation, highlighting the complexity of root systems in wetlands.
  2. Methodological Precision: It showcases the effectiveness of the minirhizotron technique, especially in single-species vegetation, emphasizing the need for tailored methodologies in diverse ecosystems.
  3. Environmental Insights: Findings underline the importance of understanding root biomass for ecological conservation and wetland management.
  4. Technological Advancements: The use of minirhizotron technology underscores its critical role in non-invasive ecological research.
  5. Ecosystem Management: The research guides strategies for wetland conservation, offering insights for managing diverse plant communities.
  6. Broader Ecological Context: Contributions extend to broader ecological studies, enhancing our understanding of wetland ecosystems.
  7. Future Research: Highlights the need for continued innovation in ecological research methods and technology, paving the way for advanced studies in ecosystem dynamics.

This study marks a significant step in ecological research, offering a deeper understanding of fine-root biomass dynamics in brackish marshes. Employing advanced minirhizotron technology it opens new avenues in non-destructive ecological analysis. The insights gained extend beyond academic interest, providing practical environmental conservation and wetland management guidelines. As we continue to explore and protect our natural ecosystems, this research serves as a reminder of the intricate and vital relationships that underpin our environment, guiding future studies in ecosystem dynamics and conservation strategies.


Chol Gyu LeeShizuo SuzukiKyotaro Noguchi & Kazuyuki Inubushi (2016) Estimation of fine root biomass using a minirhizotron technique among three vegetation types in a cool-temperate brackish marsh, Soil Science and Plant Nutrition, 62:5-6, 465-470, DOI: 10.1080/00380768.2016.1205957
