CI-710s SpectraVue Leaf Spectrometer

Leaf spectroscopy for rapid non-destructive plant stress measurement

Established technology with new and powerful features

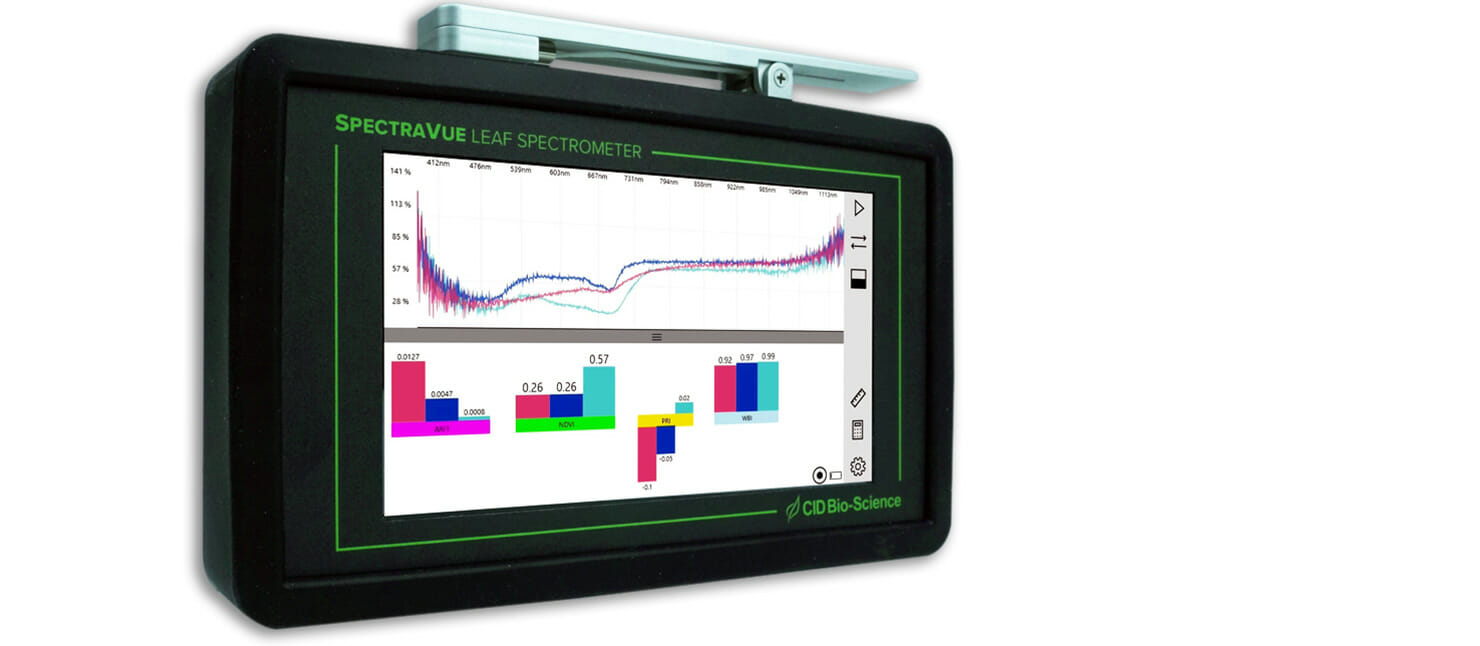

The newly redesigned SpectraVue Leaf Spectrometer has been upgraded with a powerful new spectrometer, handheld form factor, touchscreen display, and analysis software.


CI-710

Powerful Spectrometer

The SpectraVue Leaf Spectrometer has been upgraded with a powerful new 360-1100 nm spectrometer, giving you cutting-edge analytical range.

7” touchscreen display

Fully integrated, full color, 7” IPS touchscreen display allowing for easy on-board data management & analysis.

Full suite of analysis software

A full suite of on-board spectral analysis software and 40+ built-in indices allow for real-time remote insight into your data.

GPS enabled

Integrated GPS tagging ensures consistent, traceable measurements in the field.

Lightweight & Portable

One-handed operation and durable, lightweight design allow for easy data capture in any location and field conditions.

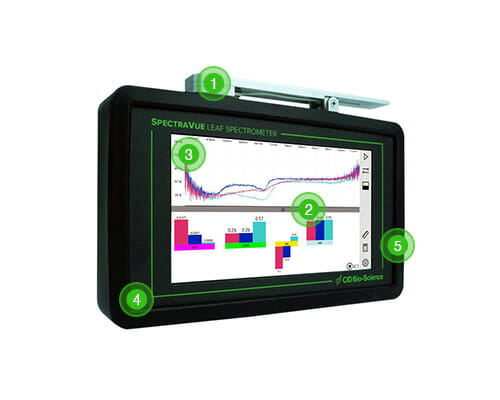

DSC_1454

1

Powerful Spectrometer

The SpectraVue Leaf Spectrometer has been upgraded with a powerful new 360-1100 nm spectrometer, giving you cutting-edge analytical range.

2

7” touchscreen display

Fully integrated, full color, 7” IPS touchscreen display allowing for easy on-board data management & analysis.

3

Full suite of analysis software

A full suite of on-board spectral analysis software and 40+ built-in indices allow for real-time remote insight into your data.

4

GPS enabled

Integrated GPS tagging ensures consistent, traceable measurements in the field.

5

Lightweight & Portable

One-handed operation and durable, lightweight design allow for easy data capture in any location and field conditions.

More than 50+ published
research papers

using spectroscopic monitoring
in plants

Download the papers here

Request a live demonstration

Powerful, handheld leaf spectroscopy

360-1100nm
spectrometer

Equipped with a powerful new spectrometer, SpectraVue provides the cutting- edge analytical range needed by professionals in the field.

Fully integrated
touchscreen display

Easily perform on-board data management & analysis with the full color, 7” IPS
touchscreen display.

On-board
analysis software

Get real-time insight into your data with SpectraVue’s full suite of spectral analysis software & 40+ built-in indices.

Location
tracking

Track measurement locations using built-in GPS tagging for consistent, traceable data collection over time.

One-handed
operation

SpectraVue’s ergonomic design allows for easy capture of leaf spectral data in any location.

Absorbance, transmittance & reflectance

Collect varied spectral data instantly by measuring absorbance, transmittance & reflectance, all in a single scan.

  • Is the CI-710s waterproof?

  • The CI-710s is not designed to be waterproof and should not be used underwater. The CI-710s is designed to be water-resistant. Use in light rain is fine, however, there are electronics that can be damaged from water entering the instrument, so it is not recommended to use the CI- 710s during heavy rainfall.

  • Does this product come with a warranty?

  • All CID Instruments come with a 12-month warranty at the point of sale. The warranty covers repairing and replacing defective parts of the instrument that were manufactured directly by CID Bioscience. The warranty does not cover wear and tear, neglect, misuse, accident, or excessive deterioration. Further, unauthorized repair and alteration by an unauthorized party voids the warranty. More information can be found in the operation manual of your instrument.

  • What are the operating conditions for this product?

  • The operating conditions for the CI-710s are –10° to 50° Celsius and 0%-90% noncondensing humidity.

  • What different types of researchers use the CI-710s?

  • Plant physiology, forestry, environmental, and crop researchers all benefit enormously from the metrics that SpectraVue Leaf Spectrometer provides.

  • How much does the SpectraVue weigh?

  • The SpectraVue Leaf Spectrometer weighs 952 g.

Have additional questions?

Click the link below to speak with one of our staff scientists about your specific application.

Specifications

Dimension 220 mm x 150 mm x 30 mm
Weight 952 g
Operating Environment -30° to 70° C storage, -10° to 50° C Operation,
0% – 90% noncondensing humidity
Minimum Leaf Size 20 mm x 20 mm
Display 7” 1024 x 600 IPS Display
Languages English, Spanish
Measure modes Reflectance, Transmittance and Absorbance

Detector Specifications

Detector CMOS Linear Array
Wavelength Range 360 – 1100 nm
Pixels 2048 pixels
Pixel Size 14 μm x 200 μm
Pixel Well Depth 100,000 electrons
Signal-To-Noise Ratio 330:1 (at full signal)
A/D Resolution 16 bit
Dark Noise 16 counts
Corrected Linearity >99.8%
Sensitivity 337.500
Wavelength Data Increment 0.55 – 0.7 nm

Spectroscopic

Grating 300 lines/mm, Slit = 55 μm
Optical Resolution 2.4 FWHM in nm
Integration Time 30 μs – 60 seconds
Dynamic Range 3300:1
Stray Light 0.2 – 1.0%

Electronics

Power Supply Two 18650 batteries and USB-C
Battery life 3 – 4 hours
Trigger Modes Automatic & Manual

Built-in Indices

Abbrev Index
ARI1 Anthocyanin Reflectance Index 1
ARI2 Anthocyanin Reflectance Index 2
CRI1 Carotenoid Reflectance Index 1
CRI2 Carotenoid Reflectance Index 2
SIPI Structure Intensive Pigmane Index
FRI Flavonols Reflectance Index
CNDVI Chlorophyll Normalized Difference
Vegetation Index
Ctr1 Carter Index 1
Ctr2 Carter Index 2
G Greeness Index
GM1 Gitelson and Merzlyak Index 1
GM2 Gitelson and Merzlyak Index 2
Lic1 Lichtenthaler Index 1
Lic2 Lichtenthaler Index 2
MCARI1 Modified Chlorophyll Absorption Ratio Index 1
MCARI 2
Modified Chlorophyll Absorption Ratio Index 2
NDVI Normalized Difference Vegetation Index
NPCI Normalized Pigment Chlorophyll Index
NPQI Normalized Phaeophytinization Index
Abbrev Index
SRPI Simple Ratio Pigment Index
TCARI Transformed CAR Index
TVI Triangular Vegetation Index
ZMI Zarco-Tejada & Miller Index
MDATT Modified DATT Index
CCI Chlorophylll Content Index
IAD Absorbance Difference Index
CPHLA Chlorophyll A (ug/cm^3)
CPHLB Chlorophyll B (ug/cm^3)
CPHLT Chlorophyll Total (ug/cm^3)
SPAD Soil-Plant Analysis Development
Grape Grape PLS Analysis
Spinach Spinach PLS Model
MRESRI Modified Red Edge Simple Ratio Index
RENDVI Red Edge Normalized Difference Vegetation Index
VREI1 Vogelmann Red Edge Index 1
VREI2 Vogelmann Red Edge Index 2
VREI3 Vogelmann Red Edge Index 3
PRI Photochemical Reflection Index
PSRI Plant Senescence Reflectance Index
WBI Water Band Index

Theory of operation

SPECTRAVUE is a powerful spectrometer paired with a leaf probe attachment, on-board operating software, and display screen. Two broadband light sources are attached inside the device. One is positioned in the leaf clamp for transmissive measurements, and one is placed inside the case for reflective measurements. The spectrometer module takes the light from the leaf probe attachment and projects the wavelength dispersed light onto a CCD array. Each pixel of the CCD array thus corresponds to a specific wavelength of light. The operating software displays the light intensity of each pixel of the CCD array.

Three spectroscopic measurements can be performed by SPECTRAVUE:

Transmittance (T) is the fraction of the incident light passing through a sample, such as a leaf. When the intensity of the incident light is Io, and the intensity of light passing through the sample is It, the transmittance, T, is then expressed as T = It / Io. The CI-710s software suite can automatically calculate and plot the transmission spectrum with the reference spectrum (the intensity profile of the light source) stored.

Absorbance (A) is related to the transmittance as A = – log T = -log(It / Io). Absorbance is commonly denoted in optical density (OD) as it is linearly proportional to the amount of light absorbing sample in the light path length (Beer-Lambert law). For example, in a standard 1-cm cuvette, a sample with an OD of 2 is twice as concentrated as a sample with an OD of 1. But note that the intensity of light transmitted from a sample with an OD of 2 is only 1/10 of that from a sample with an OD of 1. Transmission and absorption spectrum measurements are the most common applications of spectrometers. The spectrum can be used for the quantification of chemical concentrations, color analysis, the study of photochemical reactions such as photosynthesis, and the quantification of physical or optical properties such as film thickness, index of refraction, and extinction coefficient.

Reflectivity (R) is the fraction of incident light that is reflected from a sample. Depending on the purposes of the study, reflectivity can be measured for reflection at a specific angle from the sample, or the entire reflected hemisphere. The leaf probe attachment of CI-710s is not designed to measure the directional reflectivity. Nonetheless, it can be used to measure the absorption spectrum of surface substance of reflective or opaque samples.

Get to know the CI-710s SpectraVue Leaf Spectrometer

The SpectraVue Leaf Spectrometer is designed to simultaneously measure the transmission, absorbance and reflection of light by biological substances within a wide range of wavelengths that cover visible and near-infrared (NIR) light.

Director of Applied Science Galen George shows us how to calibrate the new SpectraVue Leaf Spectrometer.

Non-destructive, rapid measurement of plant stress & pigments

The newly redesigned SpectraVue Leaf Spectrometer has been upgraded with an all new spectrometer (360-1100 nm) to allow full operation in a handheld form factor with a 7” 1024 x 600 IPS touchscreen display.
