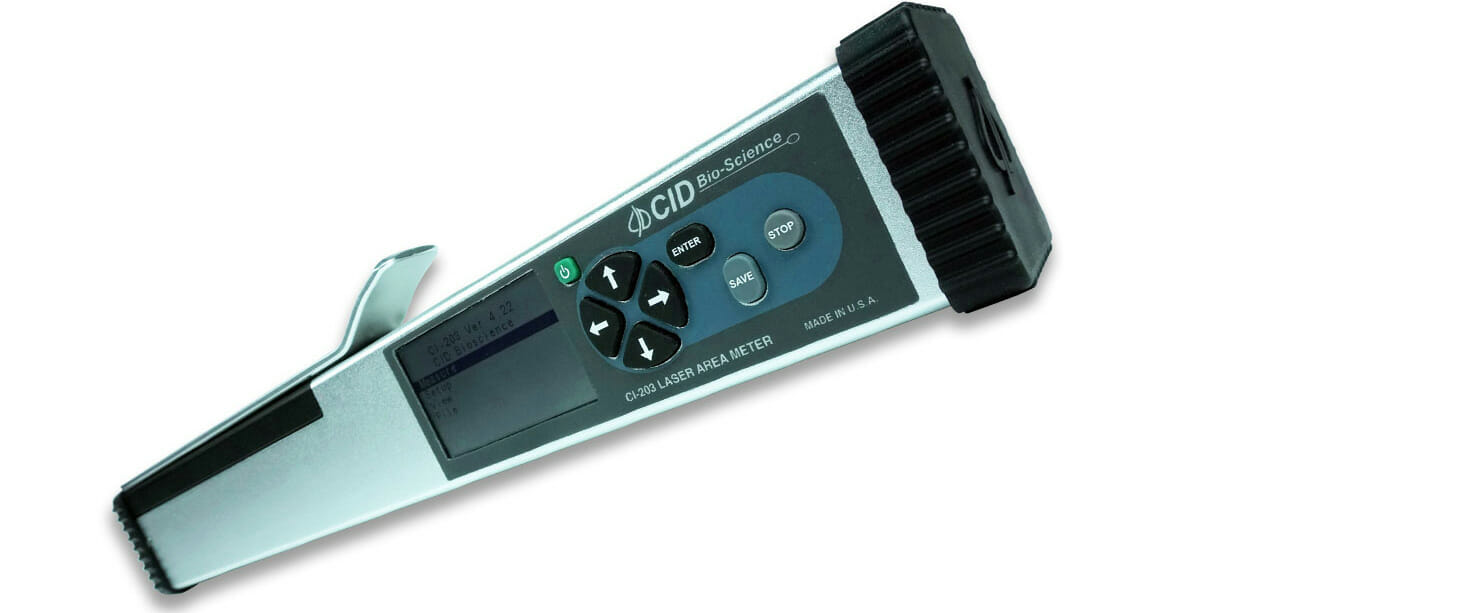

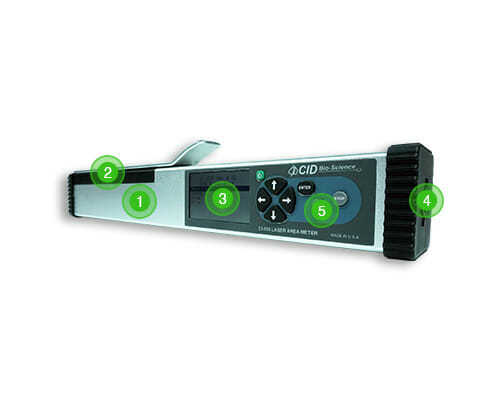

The CI-203 Handheld Laser Leaf Area Meter is a highly portable laser scanner ideal for rapid and non-destructive leaf area measurement in any location. Measurements are made easily by sweeping the scanner over a leaf to yield seven different parameters: area, width, length, perimeter, shape factor, aspect ratio, and void count.

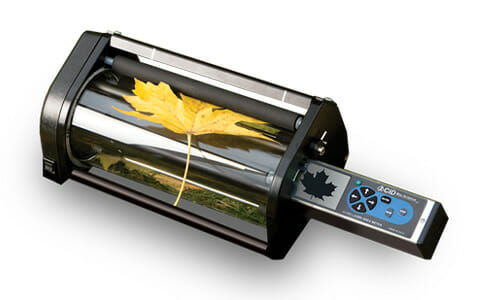

Researchers can use the CI-203 to make non-destructive measurements on leaves of living plants, enabling data collection on a leaf or plant throughout its life span. Graphical outline of the leaf shape is provided upon completing a scan, which provides verification that measurements are calculated accurately on even the most intricate leaf shapes. Built-in GPS tagging adds a location for each data point, and the removable Wi-Fi SD card provides an easy and fast way to download data to your computer. For rapid measurement of detached leaves, the CI-203CA conveyor attachment makes a perfect complement to the CI-203.
The CI-203 collects length, width, perimeter, and area measurements directly using a combination of a sweeping laser beam and an optical motion sensor. Once activated, the device sends a low energy laser beam across the laser window 500 times per second at a rate of 150 m/s. As the user moves the
CI-203 wand down the leaf, an optical sensor records the motion, and the onboard processing unit collects the data. Each laser sweep uses the optical sensor data to correctly accumulate the area and perimeter measurements. When the optical sensor detects that vertical motion has stopped, the laser subsystem stops taking measurements and the processing unit computes and posts the final results.

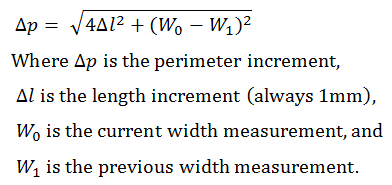

The perimeter increment is calculated and added to the perimeter accumulator. The perimeter increment is calculated using the function:
Aspect ratio and shape factor information are calculated from the measurements collected by the CI-203. The calculations used are shown below.
Aspect ratio is the ratio of the leaf length to its maximum width:
Shape factor is the ratio of the leaf area to the leaf perimeter, corrected so that the shape factor of a circle is equal to 1:
| Measuring Thickness: | 1.4 cm maximum | |
| Measuring Width: | 15cm maximum | |
| Measuring Length: | 300cm maximum | |
| Resolution: | 0.01 cm2 | |
| Accuracy: | ±1% for samples >10 cm² | |
| Interface: | USB 2.0 | |
| Scanner: | 670nm | |
| Dimensions: | 35.5L x 4.5W x5H cm | |
| Weight: | 975g | |
| Display: | Transflective graphic | |
| Scanning Speed: | 200mm/second | |
| Battery: | 7.2 volt rechargeable NiMH | |
| Battery Capacity: | Over 250 scans per charge | |
| Operating Temperature: | 0-50°C | |
| Data Storage: | 16 GB SD card | |

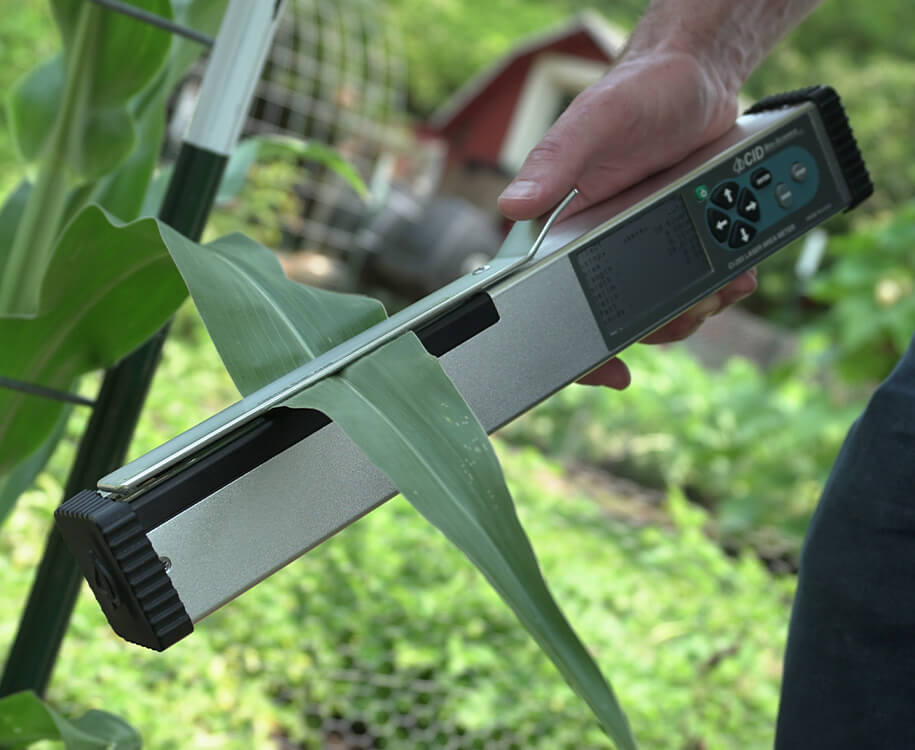

To measure leaf area, simply sweep the measuring wand over the leaf, and the CI-203 instantly scans and calculates the leaf area, width, length, perimeter, shape factor, aspect ratio and void count.
The CI-203 Handheld Laser Leaf Area Meter includes:
The CI-203 collects length, width, perimeter, and area measurements directly using a combination of a sweeping laser beam and an optical motion sensor. Once activated, the device sends a low energy laser beam across the laser window 500 times per second at a rate of 150 m/s. As the user moves the
CI-203 wand down the leaf, an optical sensor records the motion, and the onboard processing unit collects the data. Each laser sweep uses the optical sensor data to correctly accumulate the area and perimeter measurements. When the optical sensor detects that vertical motion has stopped, the laser subsystem stops taking measurements and the processing unit computes and posts the final results.
The perimeter increment is calculated and added to the perimeter accumulator. The perimeter increment is calculated using the function:
Aspect ratio and shape factor information are calculated from the measurements collected by the CI-203. The calculations used are shown below.
Aspect ratio is the ratio of the leaf length to its maximum width:
Shape factor is the ratio of the leaf area to the leaf perimeter, corrected so that the shape factor of a circle is equal to 1:
| Measuring Thickness: | 1.4 cm maximum | |
| Measuring Width: | 15cm maximum | |
| Measuring Length: | 300cm maximum | |
| Resolution: | 0.01 cm2 | |
| Accuracy: | ±1% for samples >10 cm² | |
| Interface: | USB 2.0 | |
| Scanner: | 670nm | |
| Dimensions: | 35.5L x 4.5W x5H cm | |
| Weight: | 975g | |
| Display: | Transflective graphic | |
| Scanning Speed: | 200mm/second | |
| Battery: | 7.2 volt rechargeable NiMH | |
| Battery Capacity: | Over 250 scans per charge | |
| Operating Temperature: | 0-50°C | |
| Data Storage: | 16 GB SD card | |
To measure leaf area, simply sweep the measuring wand over the leaf, and the CI-203 instantly scans and calculates the leaf area, width, length, perimeter, shape factor, aspect ratio and void count.
The CI-203 Handheld Laser Leaf Area Meter includes:
The CI-203 Handheld Laser Leaf Area Meter is a highly portable laser scanner ideal for rapid and non-destructive leaf area measurement in any location. Measurements are made easily by sweeping the scanner over a leaf to yield seven different parameters: area, width, length, perimeter, shape factor, aspect ratio, and void count.
Researchers can use the CI-203 to make non-destructive measurements on leaves of living plants, enabling data collection on a leaf or plant throughout its life span. Graphical outline of the leaf shape is provided upon completing a scan, which provides verification that measurements are calculated accurately on even the most intricate leaf shapes. Built-in GPS tagging adds a location for each data point, and the removable Wi-Fi SD card provides an easy and fast way to download data to your computer. For rapid measurement of detached leaves, the CI-203CA conveyor attachment makes a perfect complement to the CI-203.
"The leaf area meter is efficient and easy to use. The CI-203 met our expectations."
