Exploring Plant Nutrient Status: Q&A on Chlorophyll Fluorescence Measurements

Hunter Weber

May 15, 2023 at 2:03 pm | Updated May 15, 2023 at 3:20 pm | 8 min read

This Q&A article explores the fascinating world of chlorophyll fluorescence, a process where plants emit light from energy loss during photosynthesis, and how it relates to plant nutrient status. Chlorophyll fluorescence measurements provide valuable insights into plants’ photosynthetic efficiency and overall health, allowing researchers and agriculturalists to optimize nutrient management techniques.

By utilizing advanced root imaging tools, growers can monitor plant health and nutrient status in real-time, enabling targeted interventions to improve plant growth and productivity. With the advancements in chlorophyll fluorescence measurement technology, our understanding of plant nutrient status and management continues to improve, paving the way for more effective and sustainable agricultural practices.

What is chlorophyll fluorescence, and how does it relate to plant nutrient status?

The process by which plants emit light from energy loss during photosynthesis is known as chlorophyll fluorescence (Baker, 2008). Plant cells contain chlorophyll molecules that absorb sunlight and release some energy as fluorescence. This phenomenon evaluates photosynthesis’s effectiveness and determines plants’ nutritional condition.

Subscribe to the CID Bio-Science Weekly article series.

By submitting this form, you are consenting to receive marketing emails from: . You can revoke your consent to receive emails at any time by using the SafeUnsubscribe® link, found at the bottom of every email. Emails are serviced by Constant Contact

Plant nutrient status and chlorophyll fluorescence are closely related. According to research (Kalaji et al., 2014), changes in chlorophyll fluorescence can result from nutrient deficiencies. For instance, plants’ photosynthetic efficiency tends to decrease when nutrients like nitrogen, phosphorus, or potassium are deficient in the plant (Kalaji et al., 2014). Therefore, monitoring chlorophyll fluorescence enables scientists and agriculturalists to optimize nutrient management techniques.

How do chlorophyll fluorescence measurements work, and what are the key parameters to consider?

Fluorometers or pulse-amplitude modulated (PAM) fluorometers are specialized devices used to measure the fluorescence of chlorophyll (Baker, 2008). These tools illuminate plant leaves with a controlled light source and tracks the resulting fluorescence. Critical parameters used to evaluate photosynthetic efficiency and plant health are calculated using the data obtained.

The maximum quantum yield of photosystem II (PSII), also known as Fv/Fm, is one of the most crucial variables (Baker, 2008). This ratio is a common indicator of plant stress and represents the PSII’s maximum efficiency. The quantum yield of non-photochemical quenching (NPQ), which aids in assessing the plants’ ability to release extra energy, is another crucial factor (Baker, 2008). Researchers may also look at the electron transport rate (ETR), which represents the movement of electrons along the photosynthetic pathway (Baker, 2008). Among other things, these parameters offer vital information about the health and functionality of plants.

What are the main factors that can influence chlorophyll fluorescence in plants?

Environmental conditions, nutrient availability, and plant stressors are just a few variables that can affect a plant’s chlorophyll fluorescence. Environmental elements like water availability, temperature, and light intensity can directly impact chlorophyll fluorescence and photosynthetic efficiency (Murchie & Lawson, 2013). For instance, excessive light exposure or high temperatures can lead to photoinhibition, which lowers photosynthetic productivity and modifies fluorescence patterns (Murchie & Lawson, 2013).

As previously mentioned, another important factor affecting chlorophyll fluorescence is nutrient availability. Fluorescence parameters can change due to nutrient deficiencies, indicating decreased photosynthetic performance (Kalaji et al., 2014).

Last, plant stressors like pests, diseases, or contact with harmful chemicals can affect photosynthesis and change chlorophyll fluorescence (Murchie & Lawson, 2013). Researchers can identify early indications of plant stress by observing these changes, enabling prompt interventions to maintain optimal growth and productivity.

How does CID Bio-Science’s range of chlorophyll fluorescence tools, such as the CI-340, help researchers and growers assess plant nutrient status?

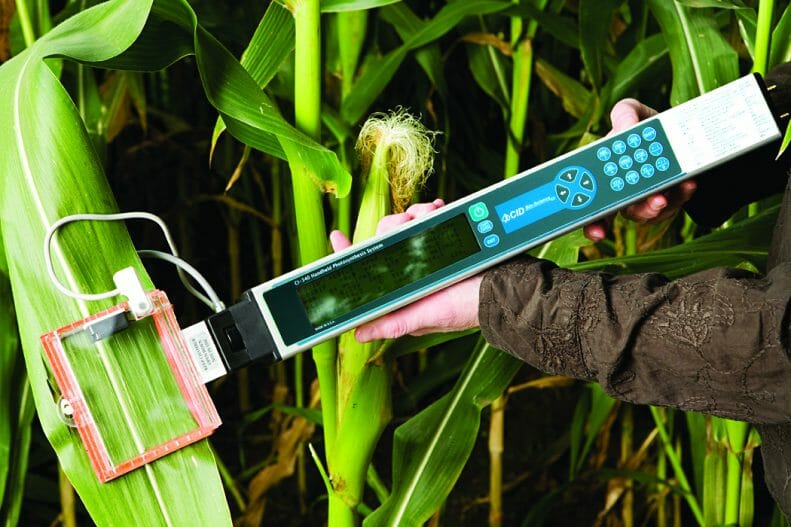

The CI-340 is one of several tools made by CID Bio-Science that use chlorophyll fluorescence to accurately assess the nutrient status of plants for researchers and growers. Users can measure chlorophyll fluorescence parameters in vivo and non-destructively using the CI-340, a handheld, portable device. This convenient tool is appropriate for laboratory and field applications, making it a flexible option for determining the health of plants.

The CI-340 enables researchers and growers to track plant health and nutrient status in real time by precisely measuring important fluorescence parameters like Fv/Fm, NPQ, and ETR. Nutrient deficiencies or other stressors can affect the plant’s performance, which can be found using these measurements. In light of this, growers can implement focused interventions to enhance plant growth and productivity.

Can chlorophyll fluorescence measurements be used for different types of plants, including crops, trees, and grasses?

Yes, chlorophyll fluorescence measurements can be used for different plants, including grasses, trees, and crops (Murchie & Lawson, 2013). In addition, fluorescence techniques can be used with various plant species because the fundamentals of photosynthesis and chlorophyll fluorescence are shared by all photosynthetic organisms (Baker, 2008).

Numerous studies have shown that chlorophyll fluorescence measurements are useful for determining the health and nutrient status of a variety of plants, including cereal crops like wheat, maize, and rice, trees like conifers and deciduous species, and grasses like turfgrass and pasture species (Murchie & Lawson, 2013; Kalaji et al., 2014). As a result, chlorophyll fluorescence measurements are a valuable tool for assessing plant health across a range of species and ecosystems.

How can chlorophyll fluorescence measurements be utilized to optimize fertilization strategies in agriculture?

According to Kalaji et al. (2014), growers can monitor plant nutrient status and identify deficiencies early by using chlorophyll fluorescence measurements to optimize fertilization strategies in agriculture. In addition, these measurements can offer vital information about the effectiveness of photosynthesis and the health of plants, which are closely related to the availability of nutrients (Baker, 2008).

Growers can implement targeted fertilization strategies to address particular nutrient imbalances by identifying nutrient deficiencies through changes in chlorophyll fluorescence parameters (Kalaji et al., 2014). This focused strategy can lessen the adverse environmental effects of excessive fertilizer use while enhancing crop yield and quality.

Additionally, regular monitoring of chlorophyll fluorescence can assist growers in fine-tuning fertilization strategies throughout the growing season, changing nutrient inputs in response to altering plant requirements and environmental conditions (Murchie & Lawson, 2013). Chlorophyll fluorescence measurements can help make fertilizer management in agriculture more effective and sustainable.

What are the benefits of using chlorophyll fluorescence measurements in precision agriculture and plant stress detection?

Chlorophyll fluorescence measurements have several uses in plant stress detection and precision agriculture, including:

1. Non-destructive evaluation: Chlorophyll fluorescence measurements enable non-invasive and non-destructive assessment of plant health and photosynthetic efficiency (Baker, 2008). Without endangering or hindering the growth of the plants, this feature enables continuous monitoring.

2. Early stress detection: Fluorescence measurements can identify plant stress before outward signs do (Murchie & Lawson, 2013). These measurements enable prompt intervention and better management of plant health.

3. Flexibility: Chlorophyll fluorescence measurements apply to various plant species, such as crops, trees, and grasses (Murchie & Lawson, 2013). As a result, they are a flexible tool for evaluating the health of plants.

4. Precision agriculture: According to Mulla (2013), fluorescence measurements can provide helpful spatial and temporal information about plant health, enabling targeted interventions and accurate management of resources like water, nutrients, and pesticides.

5. Improved decision-making: Information from chlorophyll fluorescence measurements can be combined with information from other sources, such as soil moisture and weather data, to help with decision-making and improve agricultural practices (Mulla, 2013).

Are there any limitations or challenges associated with using chlorophyll fluorescence measurements for assessing plant nutrient status?

Chlorophyll fluorescence measurements have many benefits, but their application has some drawbacks and difficulties.

1. Sensitivity to environmental factors: According to Murchie and Lawson (2013), various environmental factors, such as light intensity, temperature, and water availability, can affect chlorophyll fluorescence and make it more difficult to interpret data.

2. Instrumentation complexity: The correct operation, calibration, and maintenance of chlorophyll fluorescence instruments, which can be technically challenging, are necessary for accurate measurements (Baker, 2008). Thankfully modern advancements in this technology have made the operation of these instruments simple.

3. Data interpretation: According to Kalaji et al. (2014), it can be challenging to interpret chlorophyll fluorescence data when dealing with various plant species or environmental factors. Accurate assessment requires a thorough understanding of fluorescence parameters and how they relate to plant health.

How do you properly calibrate and maintain chlorophyll fluorescence measurement instruments to ensure accurate results?

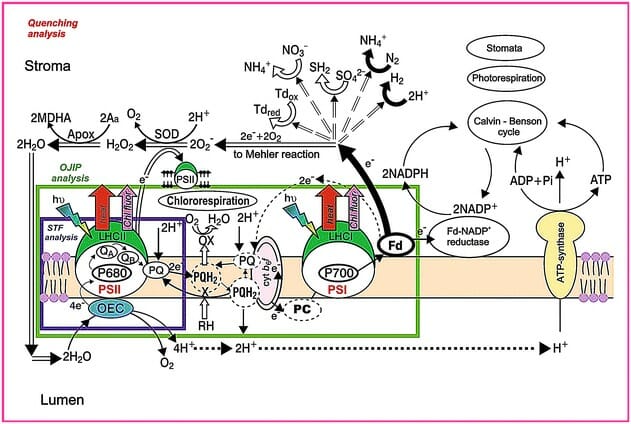

Fig 2 Kalaji, Hazem M et al. (image credits: https://pubmed.ncbi.nlm.nih.gov/25119687/)

Follow these recommendations for accurate calibration and maintenance when using instruments to measure chlorophyll fluorescence:

1. Continual calibration: Perform regular calibrations of the instrument per the manufacturer’s recommendations, typically before each measurement session (Baker, 2008).

2. Maintain clean optics: Maintain the instrument’s optics free of dust, debris, and fingerprints because these elements can affect measurement accuracy (Murchie & Lawson, 2013).

3. Stable environmental conditions: Whenever possible, conduct measurements in stable environmental settings, avoiding changes in temperature, light intensity, or other elements that could affect fluorescence (Murchie & Lawson, 2013).

4. Instrument storage: To safeguard its delicate components, store the instrument in a sterile, dry, and temperature-controlled environment when not in use (Baker, 2008).

5. Regular maintenance: Follow the manufacturer’s recommendations for routine maintenance to ensure the best performance of the instrument, such as replacing worn parts or updating software (Baker, 2008).

What are some recent advancements in chlorophyll fluorescence measurement technology, and how might they improve our understanding of plant nutrient status and management?

Improved tools for determining plant nutrient status and management have resulted from recent chlorophyll fluorescence measurement technology advances. Some significant developments include:

1. High-throughput phenotyping platforms: According to Furbank and Tester (2011), creating high-throughput phenotyping platforms has made it possible to quickly and on a large scale assess the parameters of chlorophyll fluorescence in a variety of plant populations. These platforms can speed up crop improvement efforts by making identifying genotypes with the best nutrient utilization and stress resistance easier.

2. Imaging tools: According to Murchie and Lawson (2013), chlorophyll fluorescence imaging tools enable the visualization of spatial heterogeneity in photosynthetic performance within individual plants or plant canopies. These systems can assist growers in creating targeted interventions for improved plant health and productivity by identifying localized areas of stress or nutrient deficiency.

3. Integration with remote sensing technologies: Using multispectral and hyperspectral imaging in conjunction with chlorophyll fluorescence measurements has improved the ability to monitor plant health and nutrient status at larger spatial scales (Zarco-Tejada, González-Dugo, & Berni, 2012). More effective and precise agricultural management techniques may result from this integration.

4. Lightweight and transportable technology Chlorophyll fluorescence instruments, like the CI-340 from CID Bio-Science, have improved their miniaturization and usability, making them more available to growers and researchers. As a result, chlorophyll fluorescence measurements in agricultural settings are becoming more widely used thanks to portable and user-friendly equipment.

These recent developments can enhance our knowledge of plant nutrient status and management by enabling more rapid, extensive, and accurate plant health assessments. These technological advancements can support more effective and efficient agricultural practices by making identifying nutrient deficiencies easier, monitoring plant stress, and directing targeted interventions.


Chlorophyll fluorescence is a powerful tool for assessing plant nutrient status and overall health. Researchers and growers can optimize fertilization strategies and efficiently manage resources by understanding the relationship between chlorophyll fluorescence and nutrient deficiencies. As technology advances, new tools and methods continue to emerge, allowing for more comprehensive and accurate plant health assessments. These innovations, combined with a deeper understanding of the factors affecting chlorophyll fluorescence, can revolutionize agriculture and lead to more sustainable and productive farming practices, ultimately benefiting the environment and global food security.


CID Bio-Science. (n.d.). CI-340 Handheld Photosynthesis System. Retrieved from https://cid-inc.com/products/ci-340/

Furbank, R. T., & Tester, M. (2011). Phenomics – technologies to relieve the phenotyping bottleneck. Trends in Plant Science, 16(12), 635-644.

Murchie, E. H., & Lawson, T. (2013). Chlorophyll fluorescence analysis: A guide to good practice and understanding some new applications. Journal of Experimental Botany, 64(13), 3983-3998.

Zarco-Tejada, P. J., González-Dugo, V., & Berni, J. A. (2012). Fluorescence, temperature and narrow-band indices acquired from a UAV platform for water stress detection using a micro-hyperspectral imager and a thermal camera. Remote Sensing of Environment, 117, 322-337.

Baker, N. R. (2008). Chlorophyll fluorescence: A probe of photosynthesis in vivo. Annual Review of Plant Biology, 59, 89-113.

Kalaji, H. M., Schansker, G., Ladle, R. J., Goltsev, V., Bosa, K., Allakhverdiev, S. I., … & Brestic, M. (2014). Frequently asked questions about in vivo chlorophyll fluorescence: Practical issues. Photosynthesis Research, 122(2), 121-158.

Mulla, D. J. (2013). Twenty-five years of remote sensing in precision agriculture: Key advances and remaining knowledge gaps. Biosystems Engineering, 114(4), 358-371.
